Product Overview

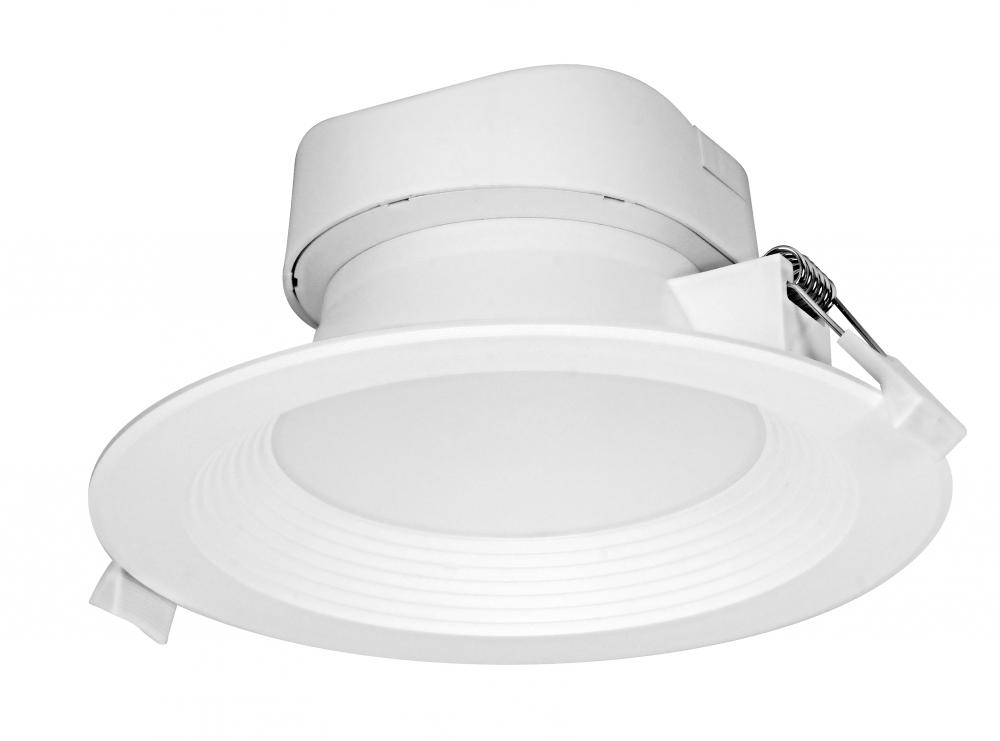

9 watt LED Direct Wire Downlight; 5-6 inch; 3000K; 120 volt; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Bulbs

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Avg Rated Hours:

40000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Diameter:

6.69

Dimmable:

Yes-Dimmable

Each Height:

7

Each Length:

3.63

Each Width:

7

Lumens:

620L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.075A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

100

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

5.875 in. Cutout

Clearance Height:

3.94

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

120V only

Dimming Type:

Phase cut

Each Cube:

0.1029

Each Quantity:

1

Efficacy:

68.89 LPW

FCC Compliant:

Yes

Feature 1:

Integrated J-Box for Direct Wire Installation

Feature 2:

Easy Install Spring Clips

Feature 3:

IC and Wet Location Rated

Feature 4:

No Recessed Can Required

Feature 5:

H:2.81 D:6.69

Finish Family:

White

Fixture shape:

Round

Has Emergency Battery:

No

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

SATCO NUVO's S39027 9-watt, LED 5-6 inch, recessed downlight fixture is direct wired and offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. D

Material:

Thermal Conductive Plastics & Aluminum

Max Drywall Thickness:

1-1/4 in.

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.95

Quantity In Pack:

1

R9 Value:

56

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 9-watt, LED 5-6 inch, recessed downlight fixture is direct wired and offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. Dimmable

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

9WLED/DW/RDL/5-6/30K/120V

Temperature (CCT):

3000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.44

Manufacturer Info

Manufactured By:

Satco Products Inc.
