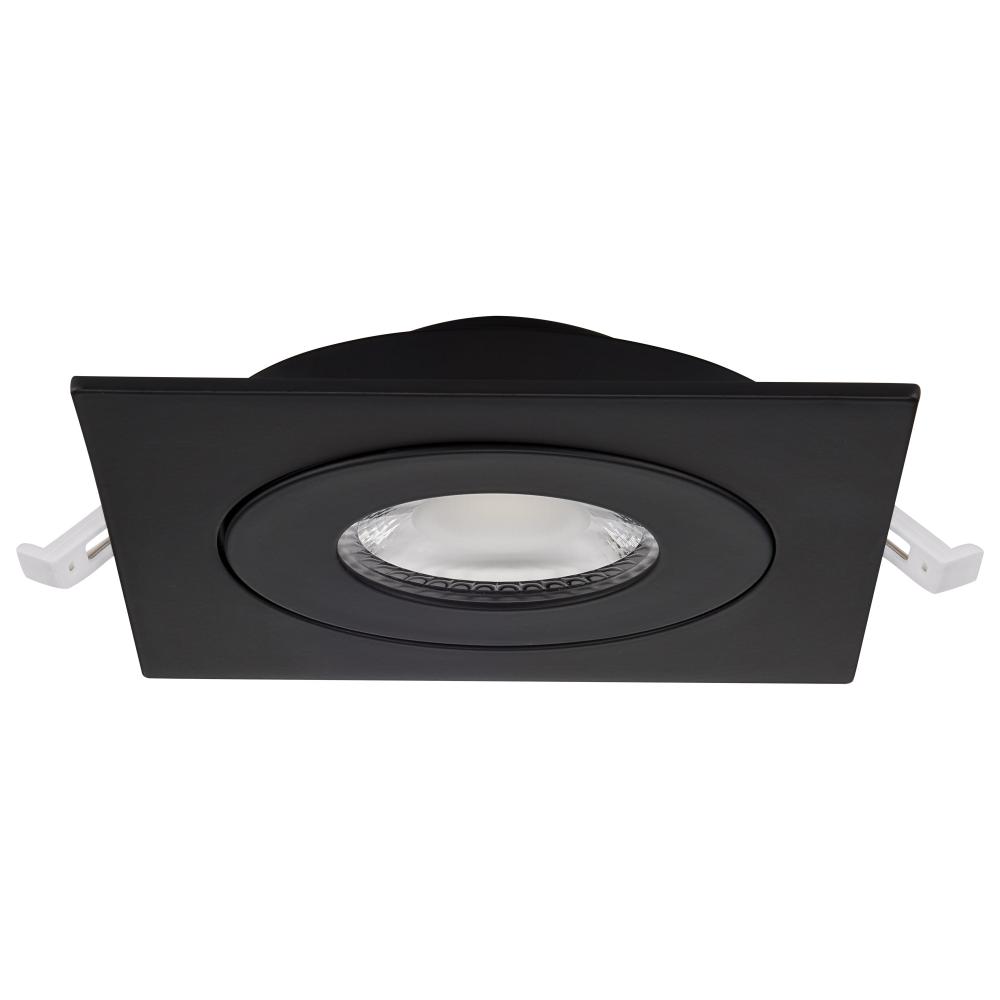

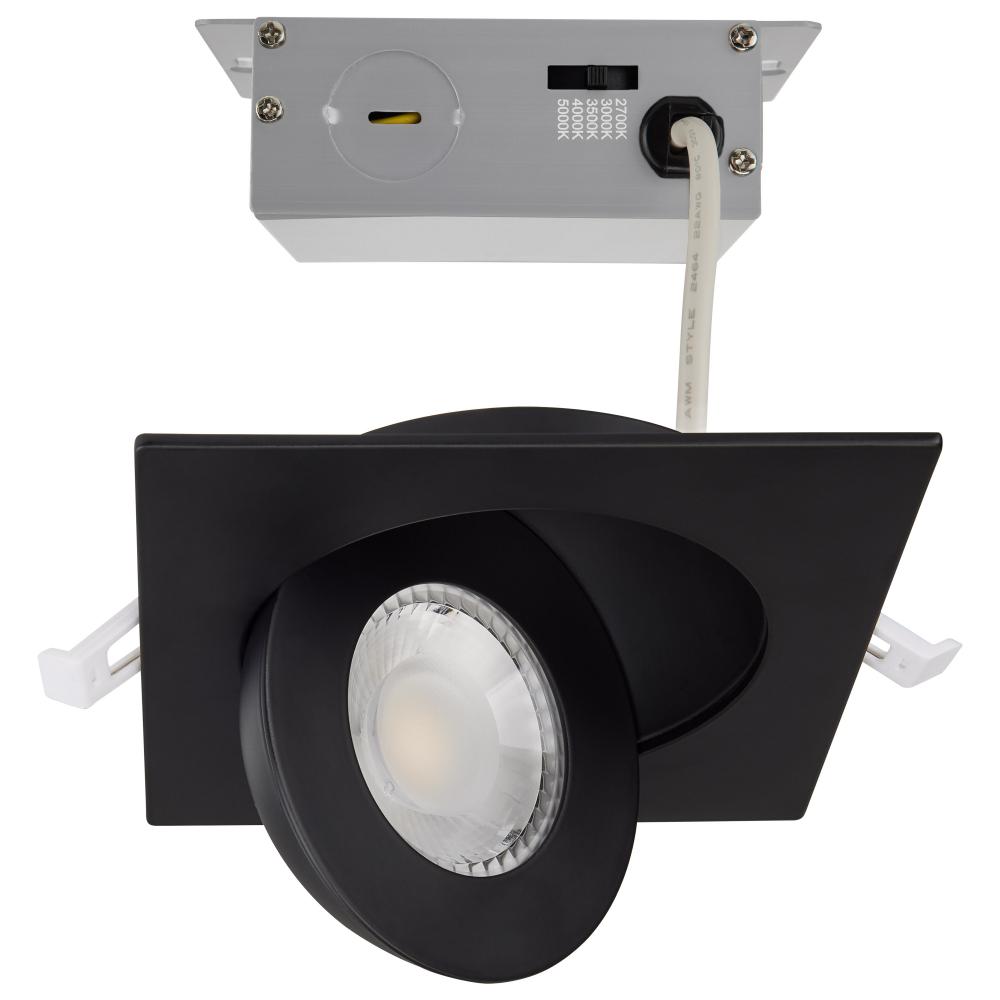

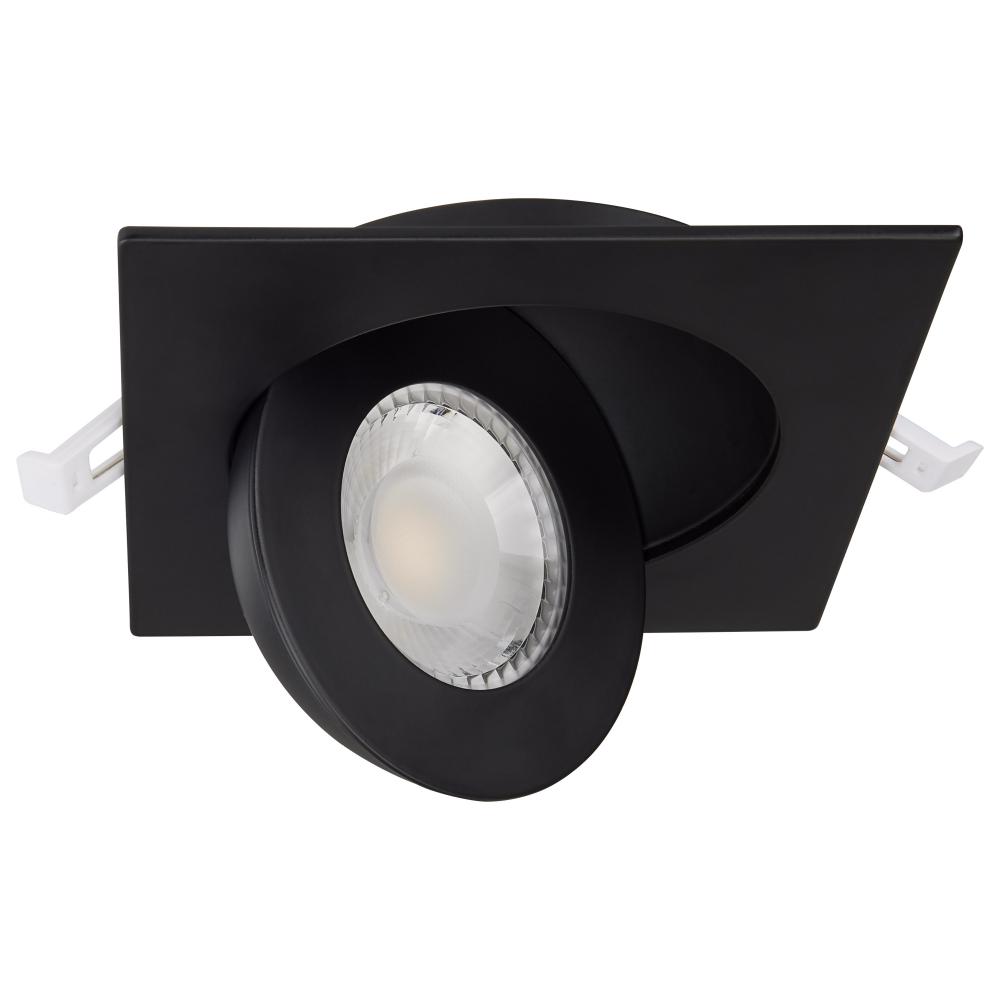

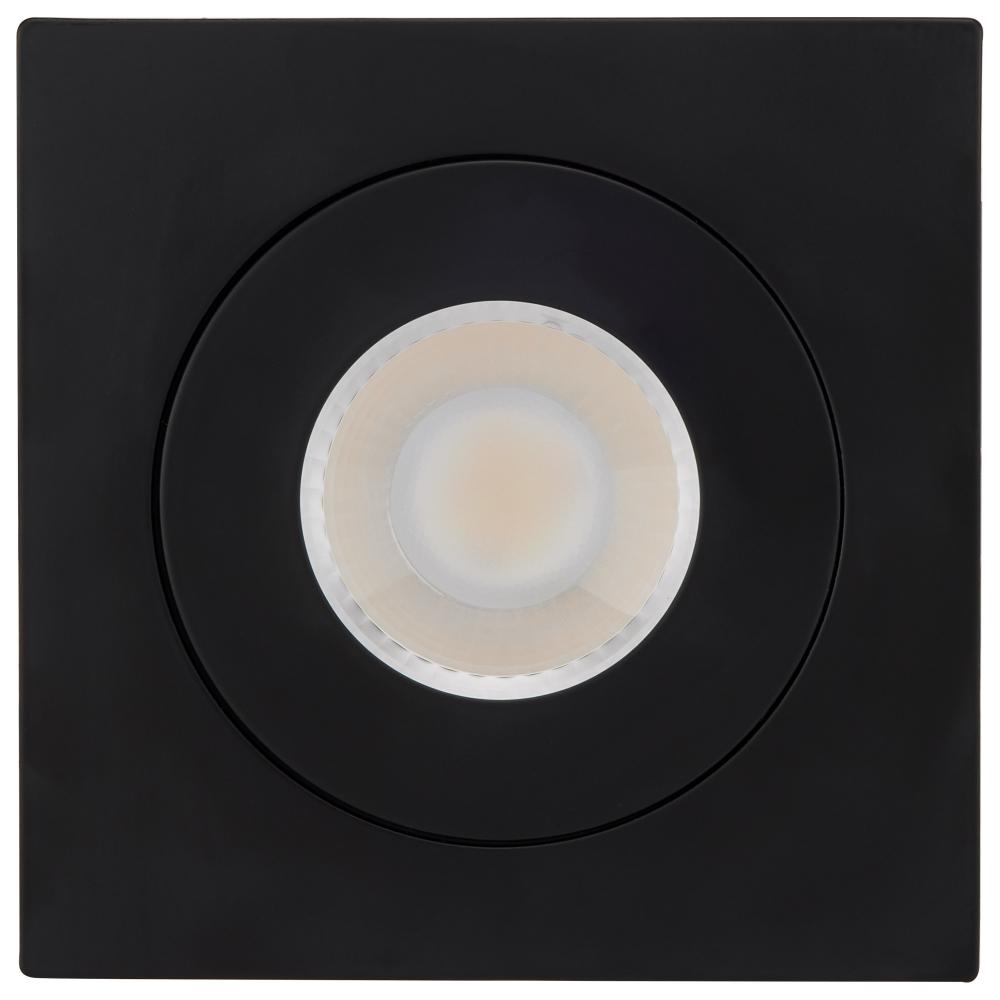

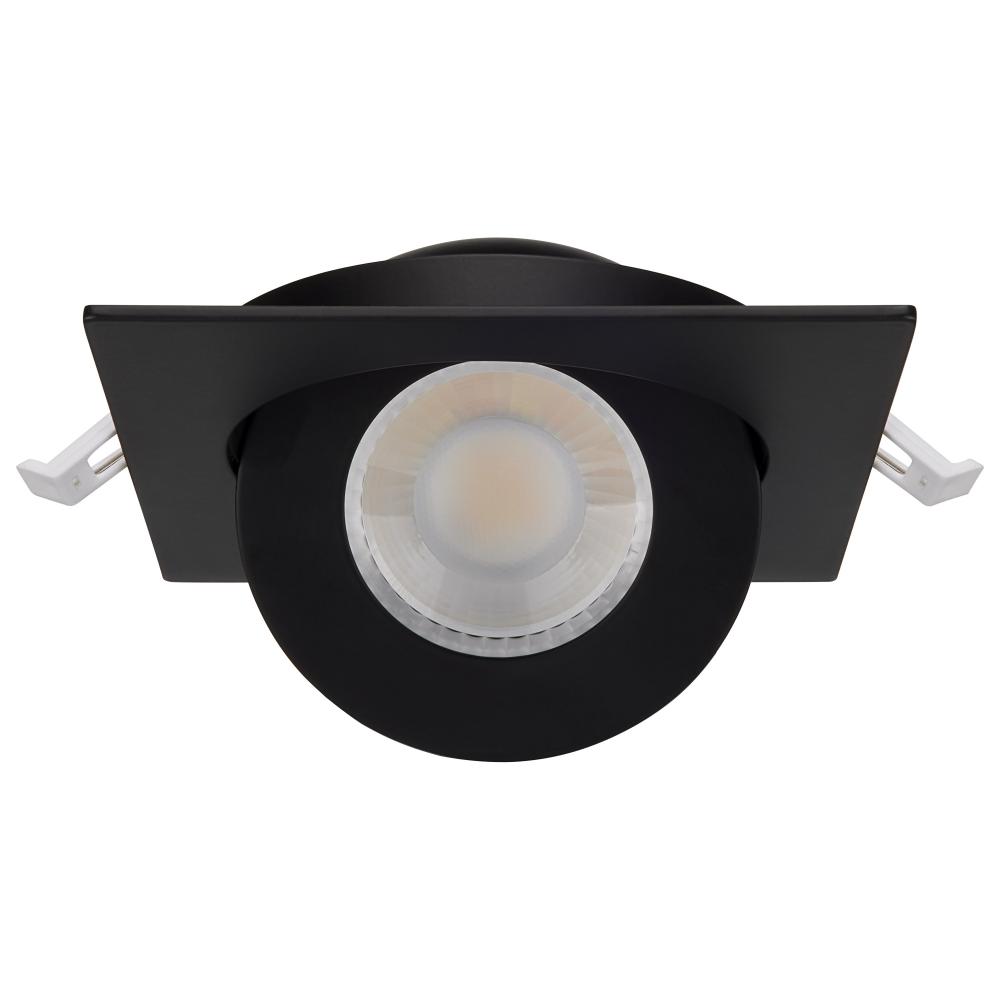

9 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 4 Inch Square; Remote Driver; Black

Part Number: S11843 / Vendor ID #: 4799

9 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 4 Inch Square; Remote Driver; Black

by Satco Products Inc.

$46.95

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1341 items available.

Dimensions

Height: 1.42"

Width: 4.92"

Product Overview

9 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 4 Inch Square; Remote Driver; Black

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

Black

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Additional Info:

Candlepower: 750

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

5.08

Each Length:

6.34

Each Width:

3.07

Length:

4.92

Lumens:

650L-750L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.075A

ANSI Base:

Integrated

BAA Compliant:

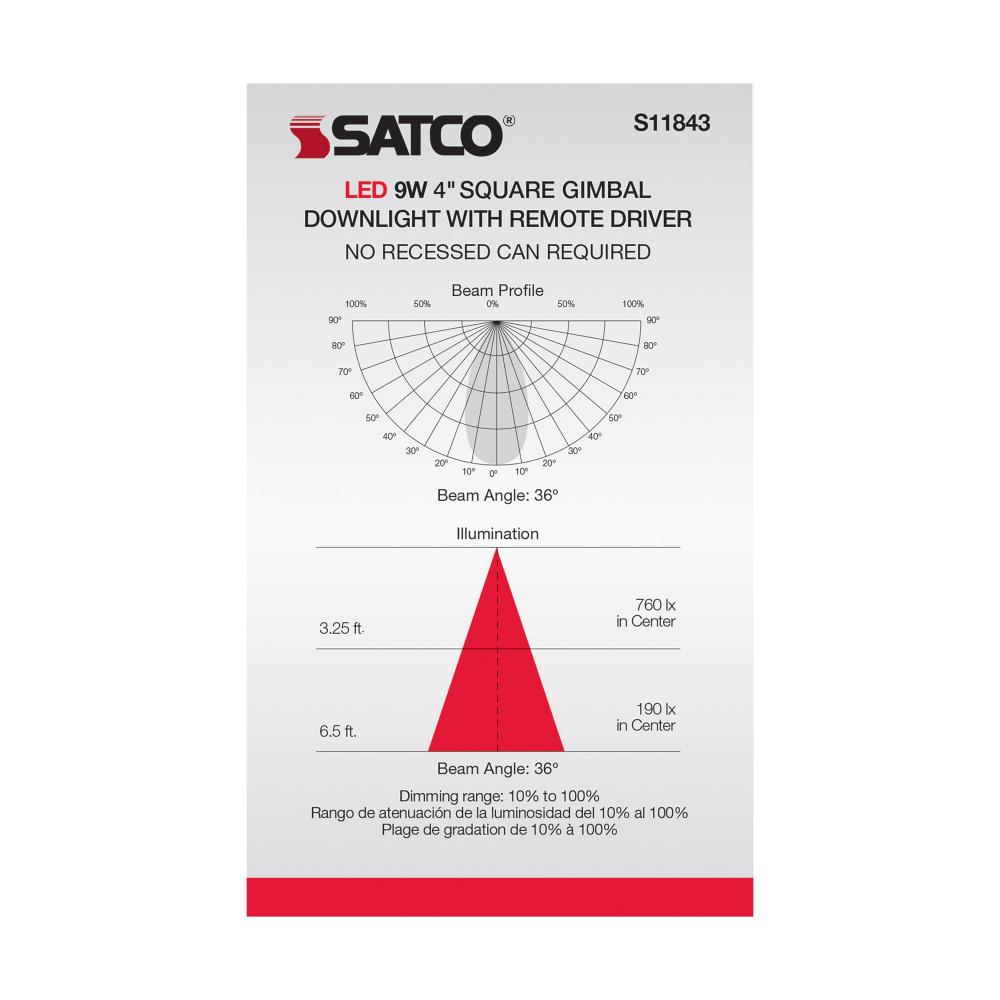

Beam Angle:

CA Prop-65:

Lead

Can Size:

4 in.

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.25 in. Cutout

Clearance Height:

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Each Cube:

0.0572

Each Quantity:

Efficacy:

72.22/77.78/83.33 LPW

FCC Compliant:

Yes

Feature 1:

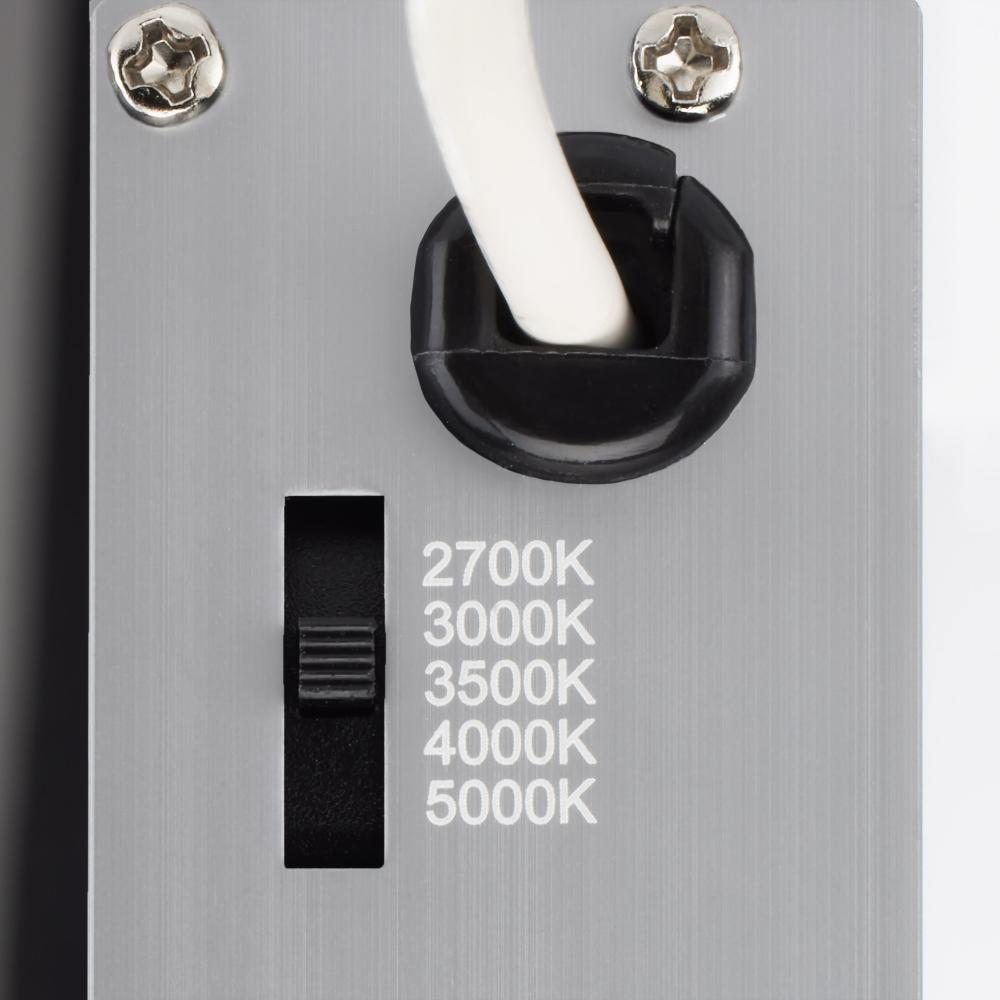

CCT selectable 2700K/3000K/3500K/4000K/5000K

Feature 2:

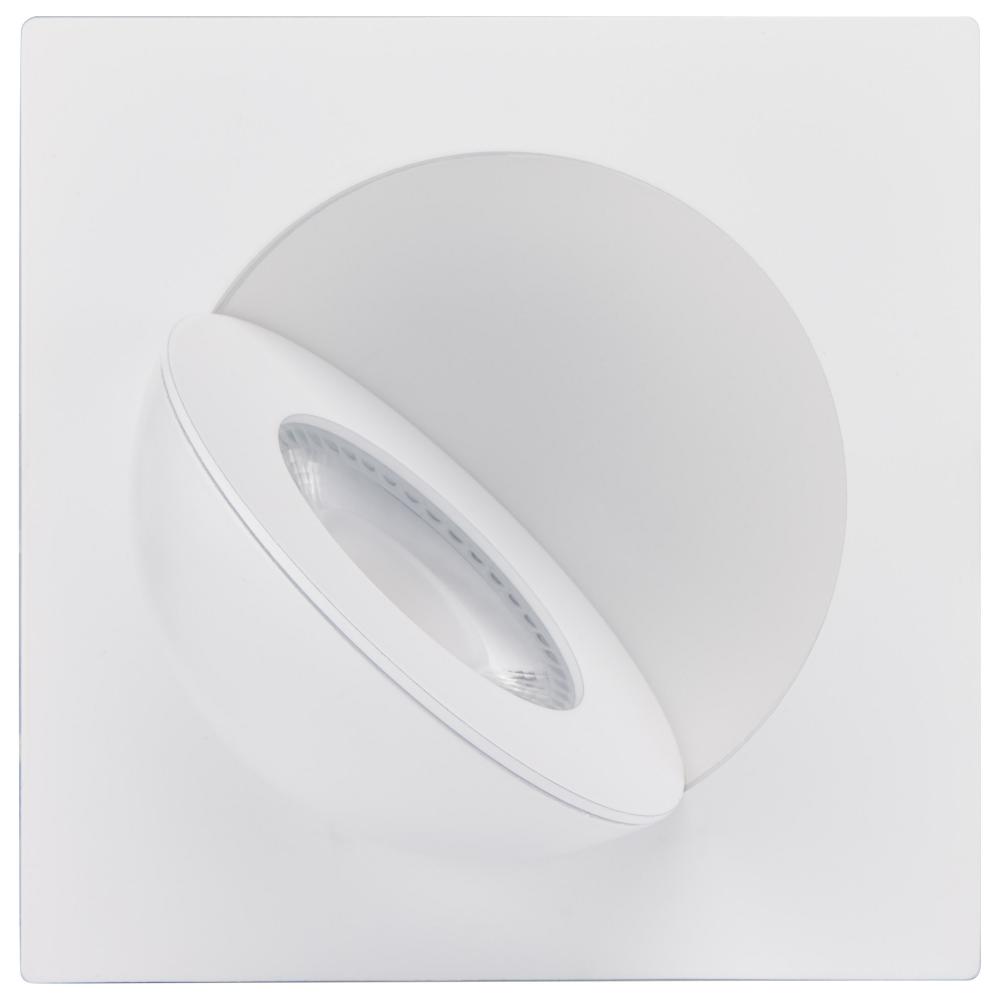

360-degree rotation, 0 to 80-degree aiming angle

Feature 3:

Dimming range 10 percent to 100 percent

Feature 4:

Damp location rated

Feature 5:

Long life - 50,000 hours

Feature 6:

L:4.92" W:4.92" H:1.42"

Finish Family:

Black

Fixture shape:

Square

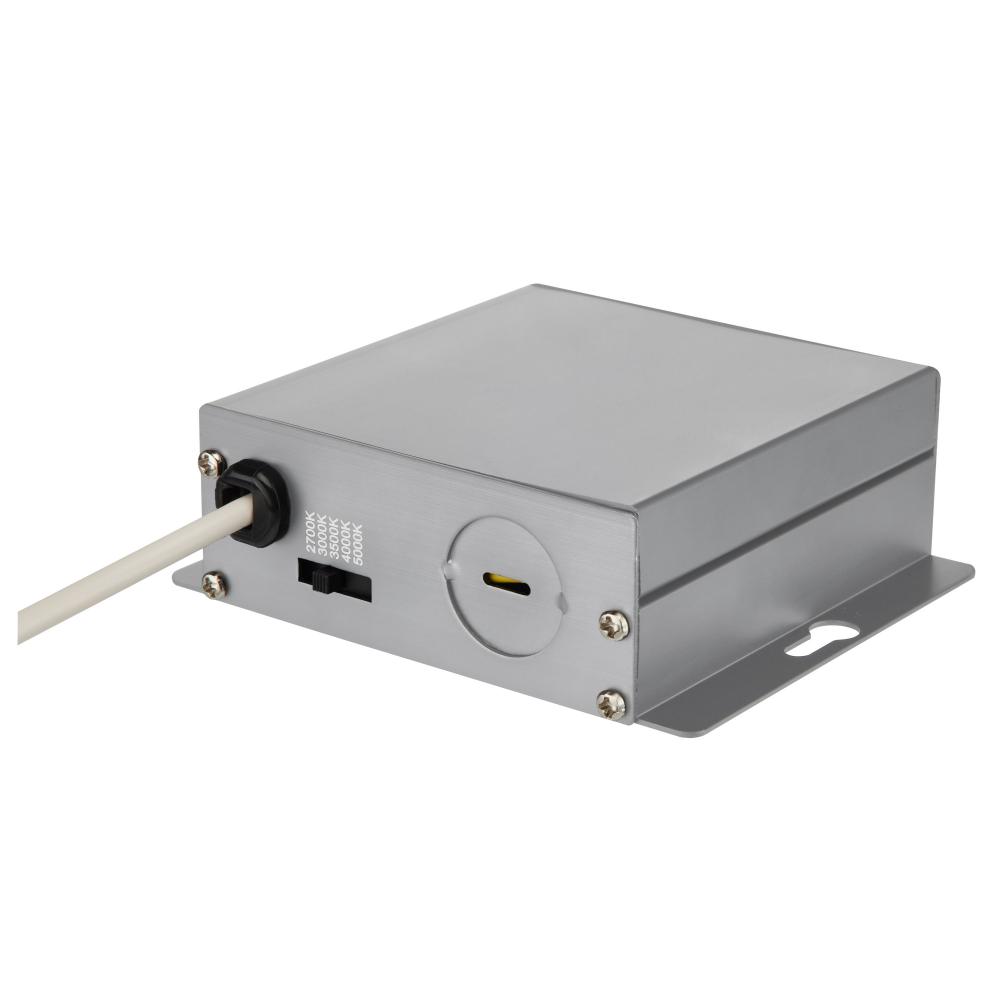

Has Driver:

Yes

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

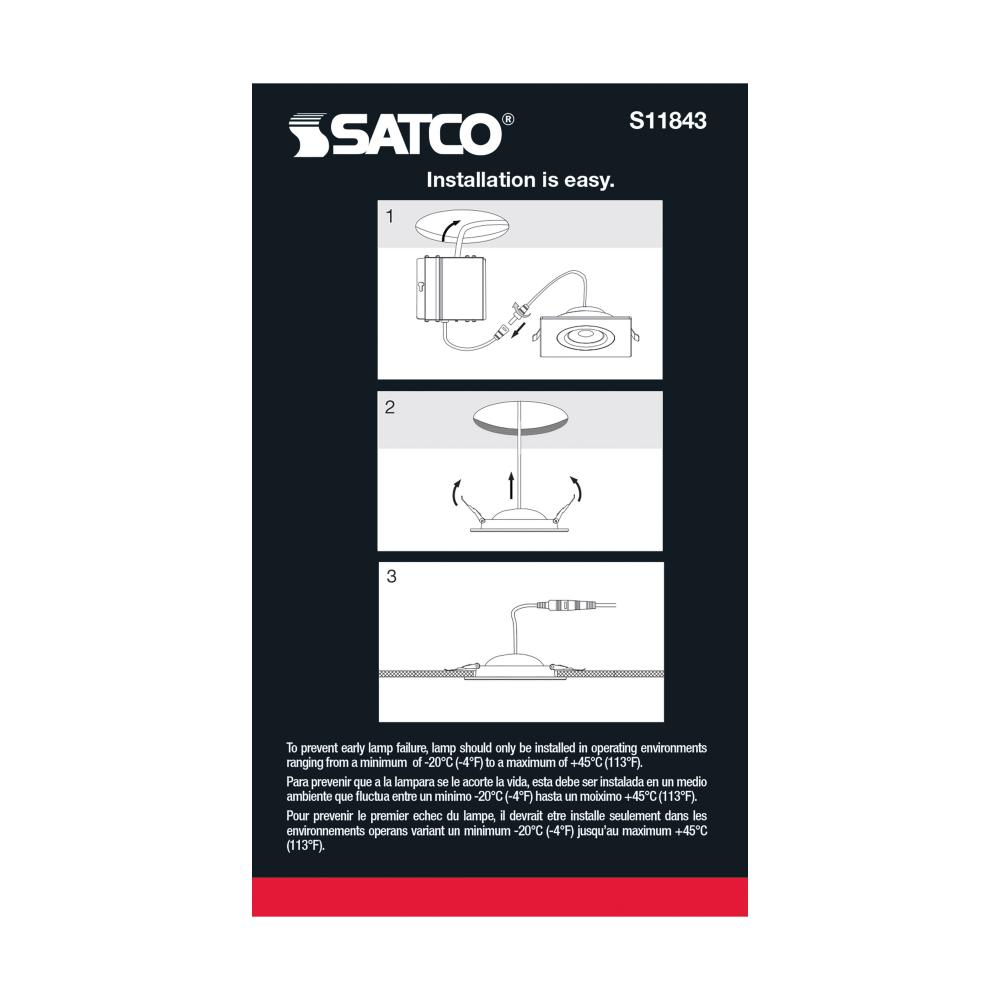

Installation Notes:

**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)

IOT Enabled:

IP Rating:

IP42

JA8 Compliant:

Yes

Lens Finish:

Clear

Lens Material:

Plastic

Long Description:

The black, four-inch square Satco S11843 gimbaled downlight delivers multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect

Material:

Aluminum

Max Drywall Thickness:

1 in.

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Color Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Rec Spacing Between Fixtures:

3 ft. to 4 ft.

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

These low profile, CCT selectable remote driver downlights deliver multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect l

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

9WLED/GBL/4/CCT/SQ/BLK

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt
