Product Overview

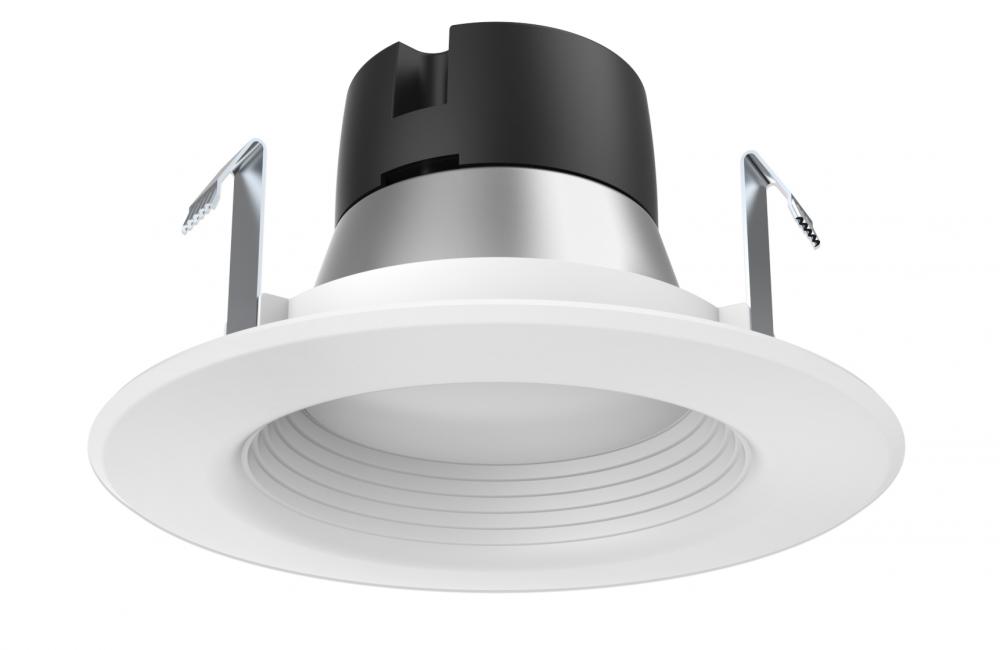

7.5 watt LED Downlight Retrofit; 4'' Baffle; 3000K; GU5.3 socket for MR16 retrofit; 12 volts

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Style:

Contemporary

Traditional

Modern

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Modern and Contemporary

Additional Info:

The dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require a

Avg Rated Hours:

35000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Diameter:

5.31

Dimmable:

Yes-Dimmable

Each Height:

5.91

Each Length:

5.51

Each Width:

3.62

Lumens:

460L

Tariff Code:

9405.42.6000

Warranty:

3 Year Limited - Fixtures

Amps:

0.625A

ANSI Base:

GU5.3 Adapter

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

Can Size:

4 in.

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.0682

Each Quantity:

1

Efficacy:

61.33 LPW

FCC Compliant:

Yes

Feature 1:

Diameter: 5.31 inches, Height: 2.91 inches

Feature 2:

Dimmable

Feature 3:

White and Frosted finish

Feature 4:

3000K Warm White Light

Feature 5:

460 lumens

Feature 6:

Wet location rated for indoor use

Feature 7:

Easy installation

Feature 8:

FCC and RoHS compliant

Feature 9:

3 year limited warranty

Finish Family:

White

Fixture shape:

Round

Incandescent Equivalent:

50W

Includes:

Bi Pin GU5.3 Adapter included with this fixture

Indoor Outdoor:

Indoor

Installation Notes:

GU5.3 base

JA8 Compliant:

No

Long Description:

Satco's S9729 7.5 watt, LED downlight retrofit is a versatile, innovative lighting solution for commercial and residential applications. This easy to install, environmentally friendly fixture is compatible with most 4 inch recessed cans. Dimmable, and

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Quantity In Pack:

1

Rated For Vapor Tight Fixture:

No

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 7.5 watt, LED downlight retrofit is a versatile, innovative lighting solution for commercial and residential applications. This easy to install, environmentally friendly fixture is compatible with most 4 inch recessed cans. Dimmable, and effici

Safety Listing:

Not Listed

SDS class:

LED_Fixture

Short Description:

7.5WLED/RDL/4"BFL/12V 90CRI 3K

Temperature (CCT):

3000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.48

Manufacturer Info

Manufactured By:

Satco Products Inc.
