Product Overview

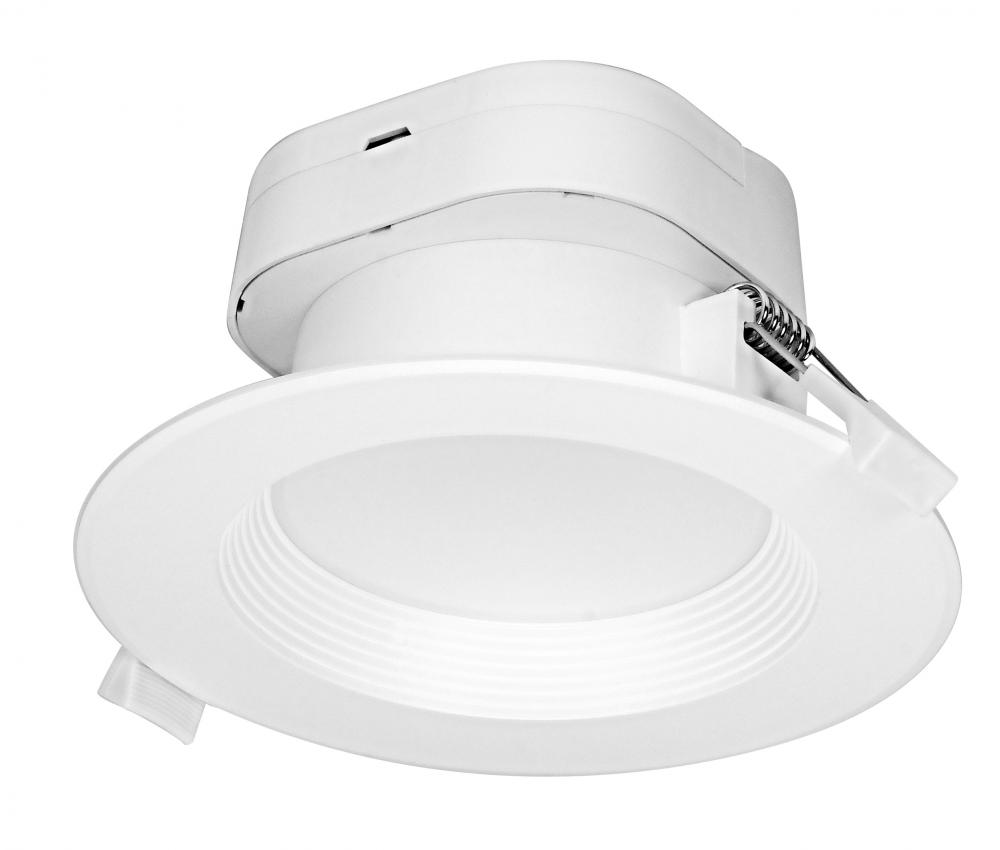

7 watt LED Direct Wire Downlight; 4 inch; 4000K; 120 volt; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Bulbs

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Avg Rated Hours:

40000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Diameter:

5.69

Dimmable:

Yes-Dimmable

Each Height:

5.9

Each Length:

5.9

Each Width:

3.54

Lumens:

490L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.058A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

100

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.3125 in. Cutout

Clearance Height:

3.94

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

120V only

Dimming Type:

Phase cut

Each Cube:

0.0713

Each Quantity:

1

Efficacy:

70.00 LPW

FCC Compliant:

Yes

Feature 1:

Integrated J-Box for Direct Wire Installation

Feature 2:

Easy Install Spring Clips

Feature 3:

IC and Wet Location Rated

Feature 4:

No Recessed Can Required

Feature 5:

H:2.75 D:5.69

Finish Family:

White

Fixture shape:

Round

Has Emergency Battery:

No

IC Rated:

Yes

Incandescent Equivalent:

45W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

Satco's S39013 7-watt, LED recessed downlight fixture is direct wired and emits cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. Dimmable and long

Material:

Thermal Conductive Plastics & Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.95

Quantity In Pack:

1

R9 Value:

56

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 7-watt, LED recessed downlight fixture is direct wired and emits cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. Dimmable and long lastin

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

7WLED/DW/RDL/4/40K/120V

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.37

Manufacturer Info

Manufactured By:

Satco Products Inc.
