Product Overview

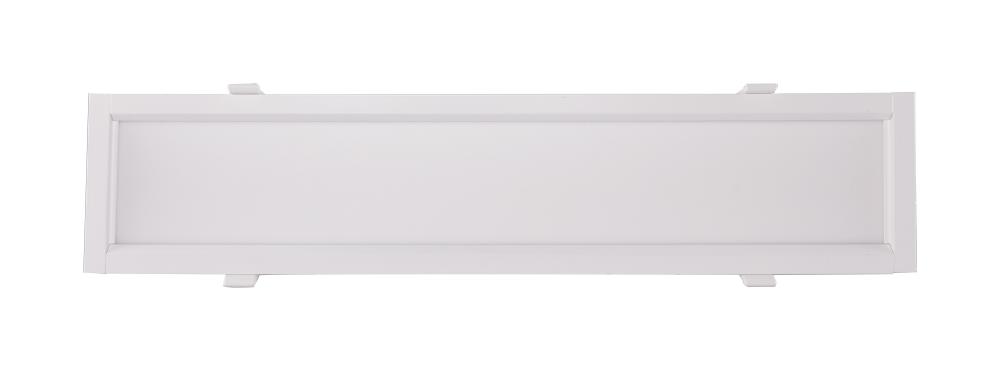

15 Watt LED Direct Wire Linear Downlight; 18 in.; Adjustable CCT; 120 Volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Avg Rated Hours:

40000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

3.15

Each Length:

18

Each Width:

3.74

Length:

18

Lumens:

1125L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.125A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

110

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

17.12 L x 3.15 W in. Cutout

Clearance Height:

4.72

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Each Cube:

0.1227

Each Quantity:

1

Efficacy:

75.00 LPW

FCC Compliant:

Yes

Feature 1:

5 sizes with 3 CCT selections

Feature 2:

Title 24 compliant

Feature 3:

Damp location rated

Feature 4:

Air tight

Feature 5:

40,000 average rated hours

Feature 6:

40,000 average rated hours

Finish Family:

White

Fixture shape:

Linear

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

Satco's S11721 15 watt, 18 inch LED recessed downlight is a sleek solution for advanced architectural installations. This air tight fixture offers a low-profile aesthetic with even light distribution and CCT selectability for design versatility. This e

Material:

Aluminum / Plastic

Max Drywall Thickness:

1-1/8 in.

Minimum Compartment Size:

Length: 17.7 in. Width: 7.87 in. Height: 4.72 in.

Mounting Procedure:

Ceiling/Wall

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's LED Linear Recessed/Direct Wire feature a beveled trim for a sleek, recessed appearance and offer a low-profile aesthetic with even light distribution and design versatility. The convenient direct wire junction box and spring-clip mounting make

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

15WLED/DW/LINEAR/18"/ADJ-CCT

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

1.43

Manufacturer Info

Manufactured By:

Satco Products Inc.
