Product Overview

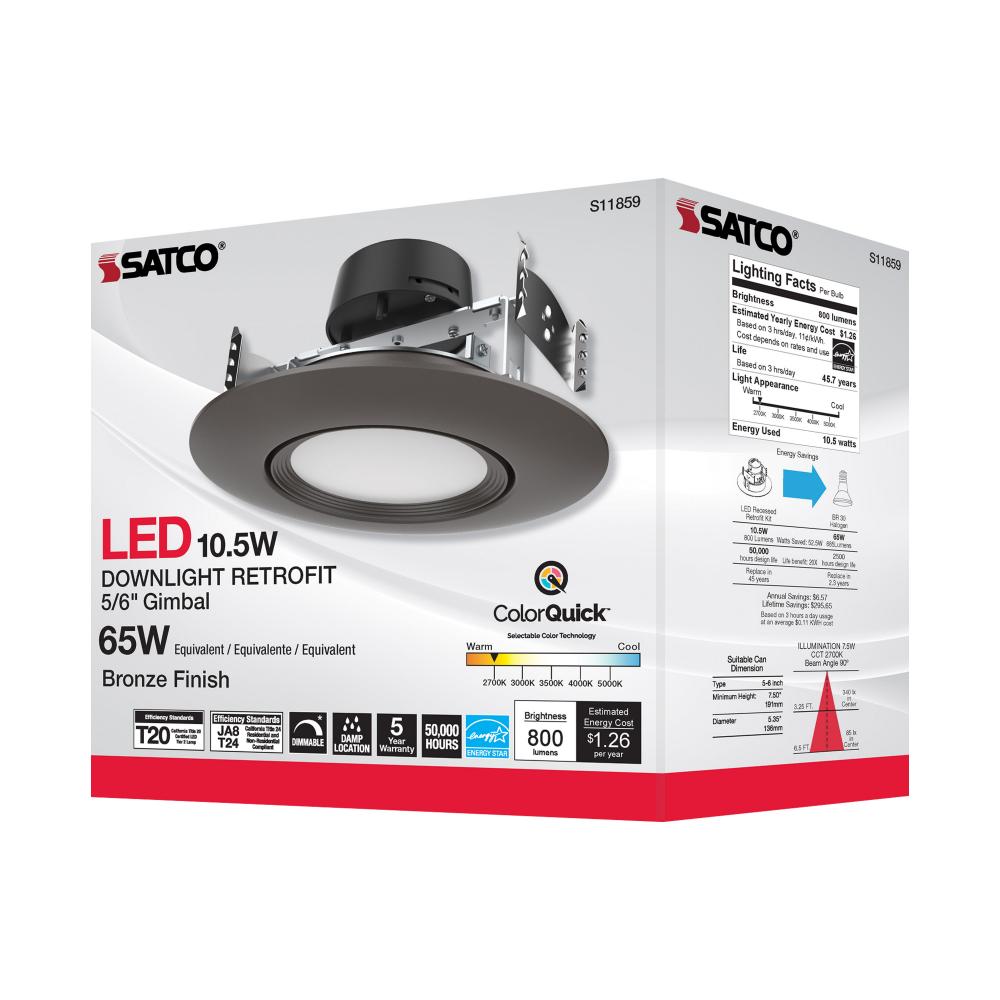

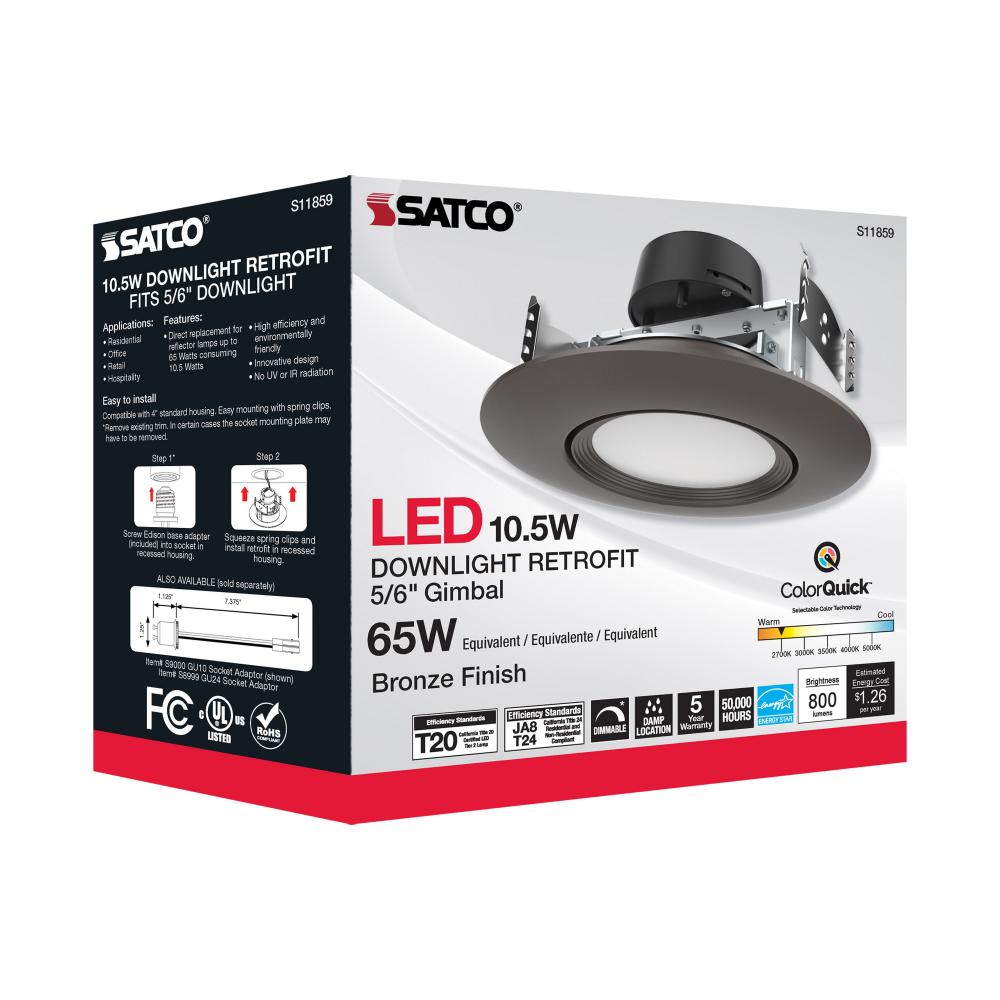

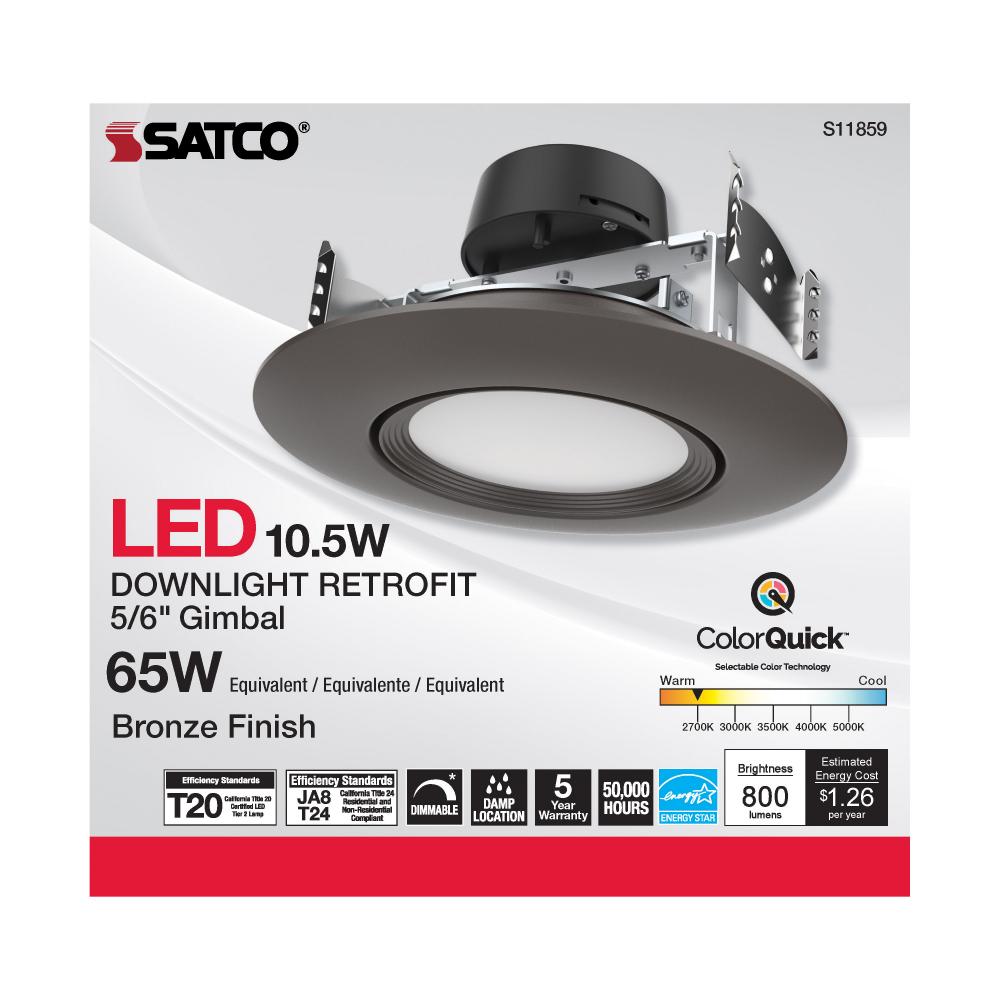

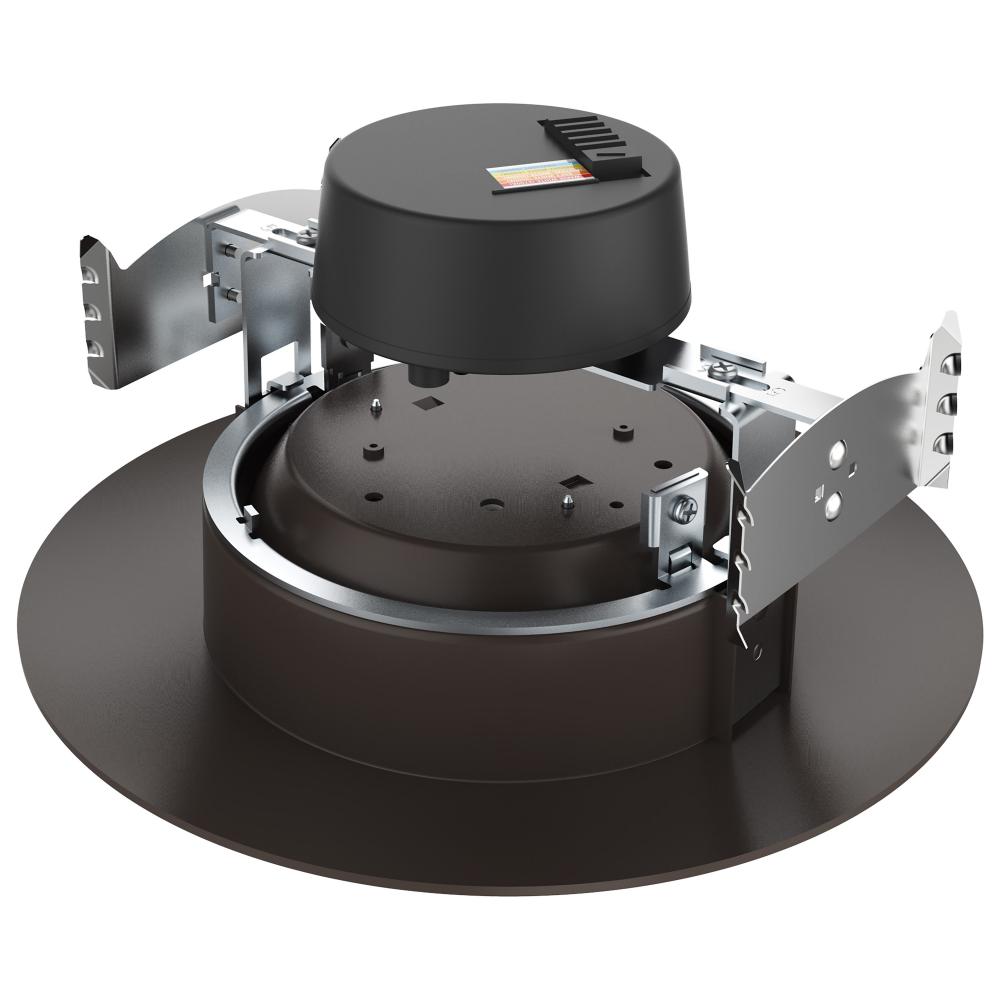

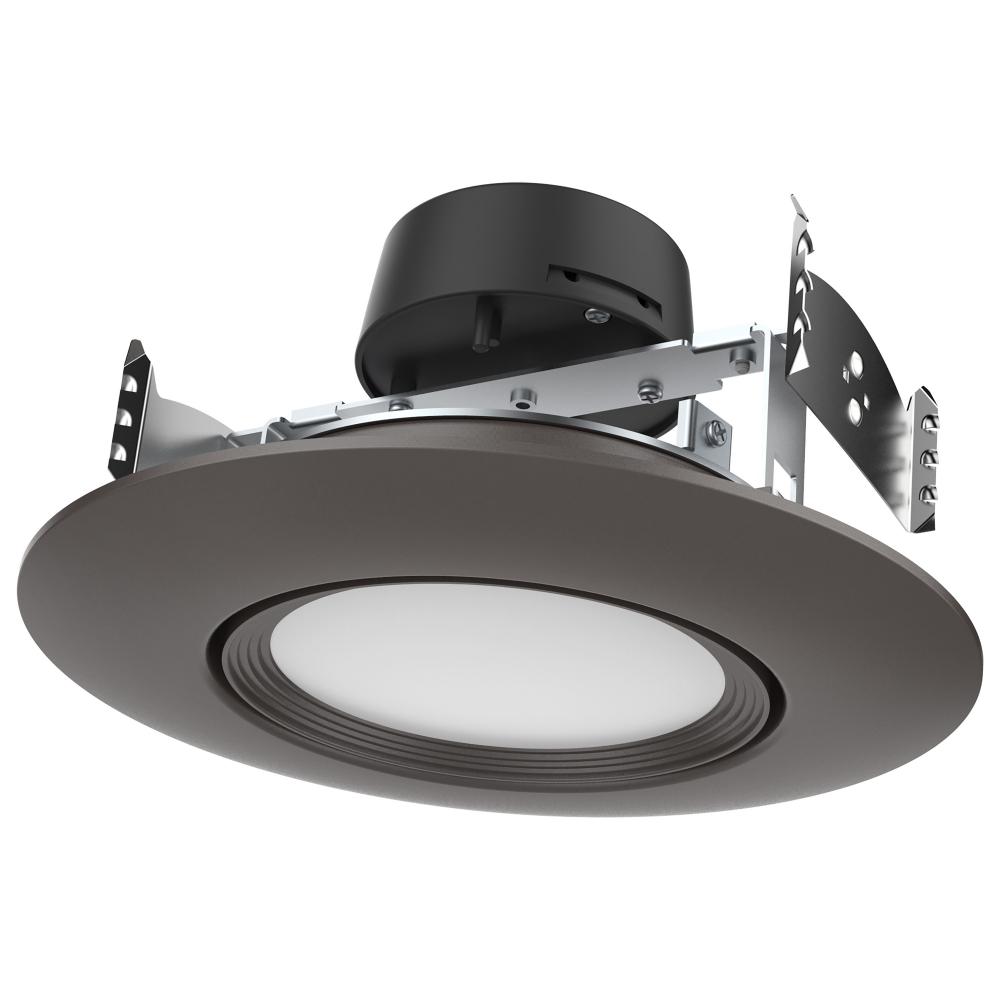

10.5 Watt; LED Retrofit Downlight; Gimbaled; 120 Volt; CCT Selectable; Bronze Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

Bronze

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

7.4

Dimmable:

Yes-Dimmable

Each Height:

8.07

Each Length:

8.27

Each Width:

4.53

Lumens:

800L

Tariff Code:

8539.52.0091

Warranty:

5 Year Limited - Fixtures

Air Tight:

No

Amps:

0.088A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

Can Size:

5-6 in.

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.175

Each Quantity:

1

Efficacy:

76.19 LPW

FCC Compliant:

Yes

Feature 1:

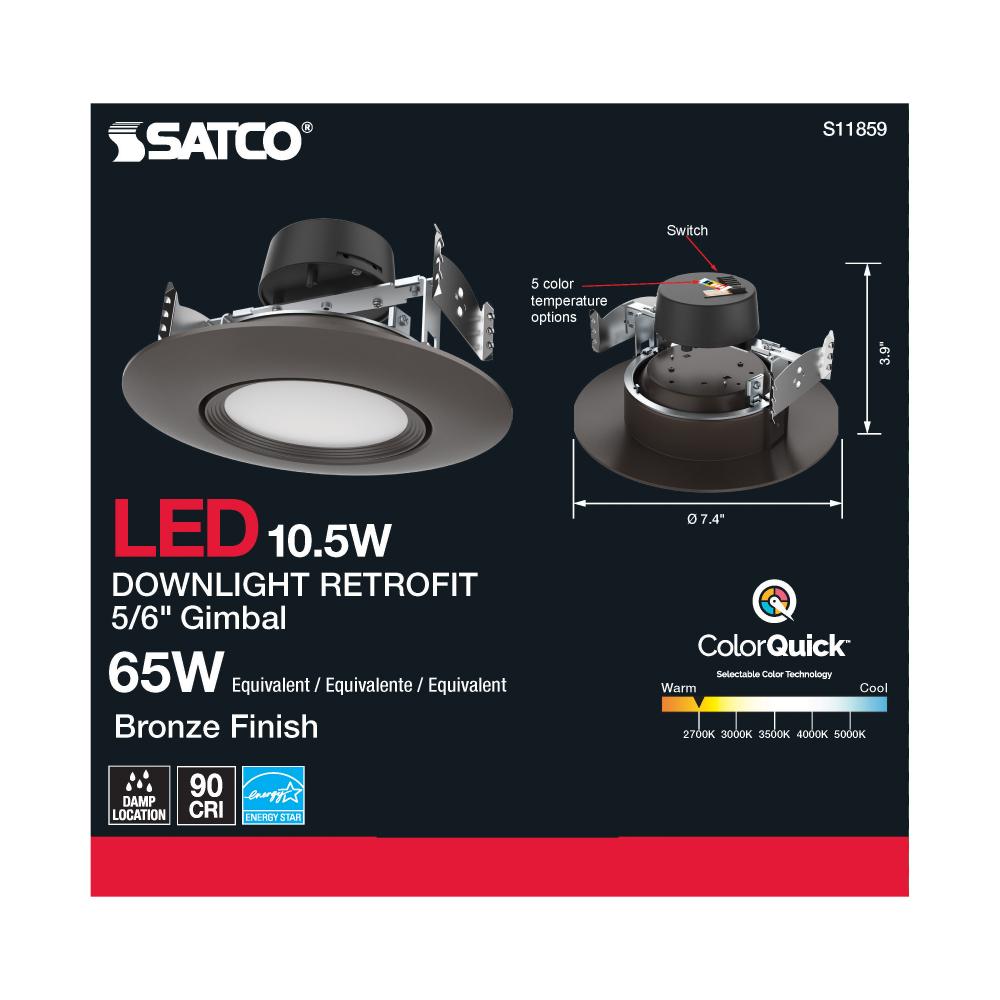

Diameter: 7.40 inches, Height: 3.90 inches

Feature 2:

Bronze Finish

Feature 3:

90 degree beam spread

Feature 4:

CCT Selectable

Feature 5:

800 lumens

Feature 6:

Rated for 50,000 hours

Feature 7:

Superior 90 CRI light quality

Feature 8:

5 year limited warranty

Feature 9:

FCC and RoHS compliant

Finish Family:

Bronze

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

65W

Includes:

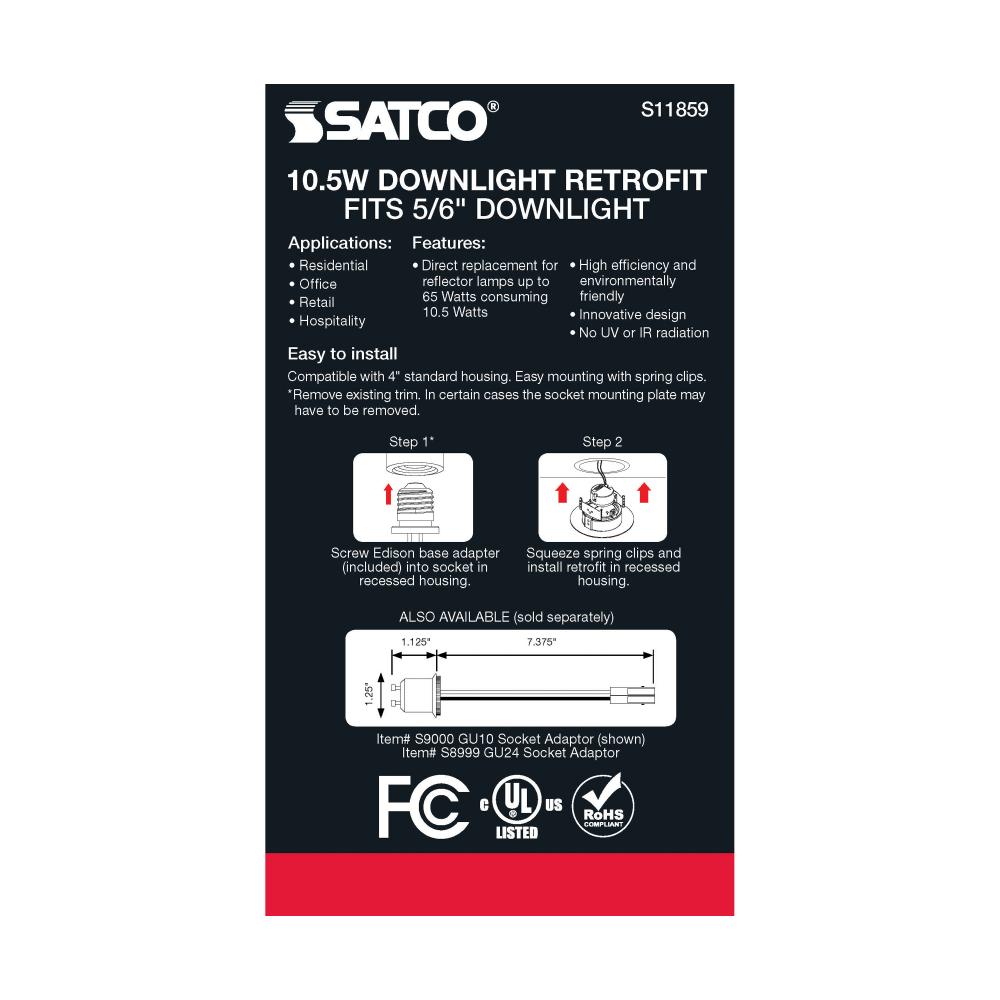

E26 Adapter included (S9001)

Indoor Outdoor:

Indoor

IOT Enabled:

No

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Long Description:

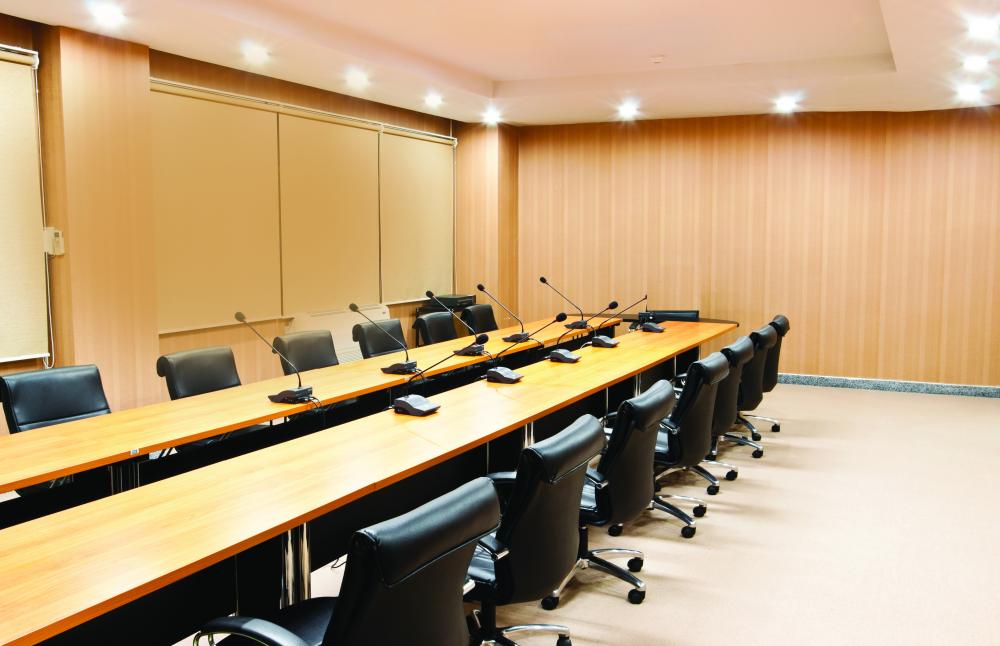

Satco's S11859 10.5 watt gimbaled LED downlight is a sleek lighting solution for residential and commercial applications. Illuminate kitchens, dining rooms, and office spaces with this CCT selectable fixture. Versatile and functional, this brushed nick

Material:

Polycarbonate (PC)

Mounting Procedure:

Recessed Direct Wire

NSF Approved:

No

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Color Box

Power Factor:

0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 10.5 watt gimbaled LED downlight is a sleek lighting solution for residential and commercial applications. Illuminate kitchens, dining rooms, and office spaces with this CCT selectable fixture. Versatile and functional, this brushed nickel trim

Safety Listing:

cULus - Certified;cULus - Classified

SDS class:

LED_Fixture

Short Description:

10.5WLED/DIR/5-6/CCT-SEL/120V/

Sloped Ceiling Compatible:

No

Specification Notes:

Aiming Angle: 22 Degrees

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Color:

Bronze

Wattage Selectable:

No

Weight Lb.:

0.84

Manufacturer Info

Manufactured By:

Satco Products Inc.
