Product Overview

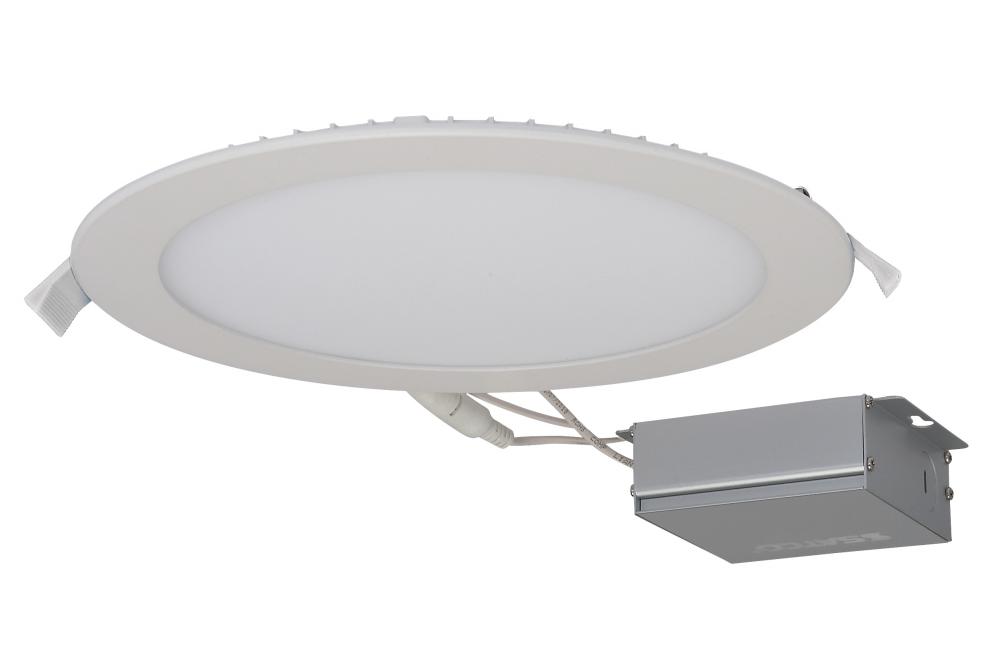

24 watt LED Direct Wire Downlight; Edge-lit; 8 inch; 5000K; 120 volt; Dimmable; Round; Remote Driver

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Additional Info:

Integrated j-box for direct wire installation

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Natural Light

Diameter:

8.880000000000001

Dimmable:

Yes-Dimmable

Each Height:

9.41

Each Length:

9.41

Each Width:

1.81

Lumens:

1800L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.200A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

108

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

8.125 in. Cutout

Clearance Height:

2

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Each Cube:

0.09279999999999999

Each Quantity:

1

Efficacy:

75.00 LPW

FCC Compliant:

Yes

Feature 1:

Diameter: 8.88 inches, Height: 0.94 inches

Feature 2:

Dimmable

Feature 3:

Wet location rated for indoor use

Feature 4:

5000K Natural White Light

Feature 5:

Superior 90 CRI light quality

Feature 6:

5 year limited warranty

Feature 7:

1800 lumens

Feature 8:

Rated for 50,000 hours

Feature 9:

FCC and RoHS compliant

Finish Family:

White

Fixture shape:

Round

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

120W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

Satco's S11608 24 watt, 8 inch recessed downlight offers a tremendous amount of versatility in multiple applications. Requiring less than one inch of ceiling height, the fixture can be installed in cabinets, basements, and any other areas where space i

Material:

Aluminum

Max Drywall Thickness:

5/8 in.

Mounting Procedure:

Ceiling

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

Rec Spacing Between Fixtures:

6 ft. to 8 ft.

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 24 watt, 8 inch recessed downlight offers a tremendous amount of versatility in multiple applications. Requiring less than one inch of ceiling height, the fixture can be installed in cabinets, basements, and any other areas where space is at a

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

24WLED/DW/EL/8/950/RND/RD

Sloped Ceiling Compatible:

No

Temperature (CCT):

5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

1.89

Manufacturer Info

Manufactured By:

Satco Products Inc.
