Product Overview

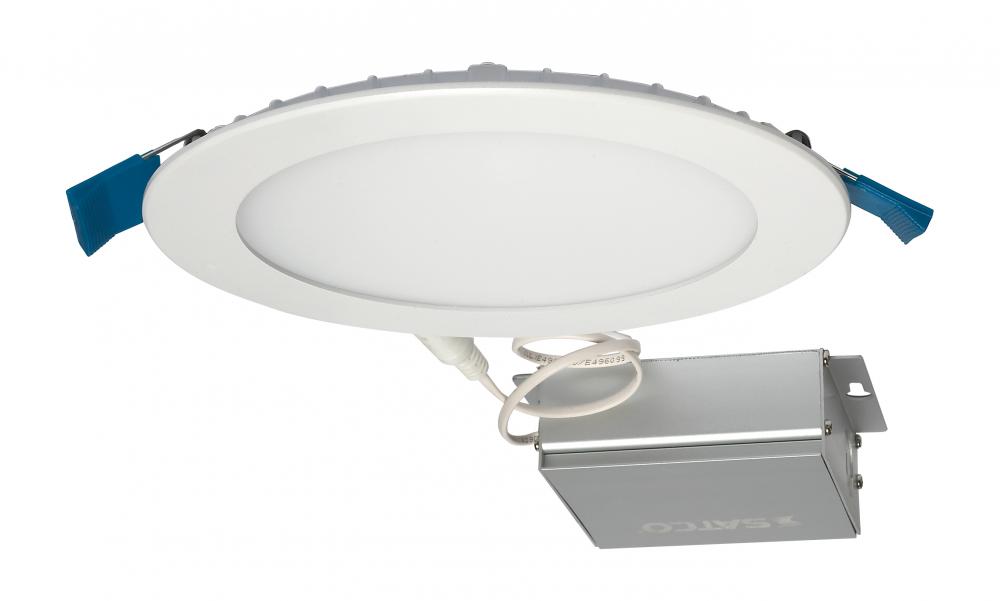

12 watt LED Direct Wire Downlight; Edge-lit; 6 inch; 3000K; 120 volt; Dimmable; Round; Remote Driver

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Additional Info:

Integrated j-box for direct wire installation

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Diameter:

6.75

Dimmable:

Yes-Dimmable

Each Height:

7.13

Each Length:

7.13

Each Width:

2.13

Lumens:

850L

Tariff Code:

9405.40.6000

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.100A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

108

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

6.1875 in. Cutout

Clearance Height:

2

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.06270000000000001

Each Quantity:

1

Efficacy:

70.83 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Round

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor

Installation Notes:

**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Material:

Aluminum

Max Drywall Thickness:

5/8 in.

Mounting Procedure:

Ceiling

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.99

Quantity In Pack:

1

Rec Spacing Between Fixtures:

4 ft. to 6 ft.

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

12WLED/DW/EL/6/930/RND/RD

Sloped Ceiling Compatible:

No

Temperature (CCT):

3000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

1.12

Manufacturer Info

Manufactured By:

Satco Products Inc.
