Product Overview

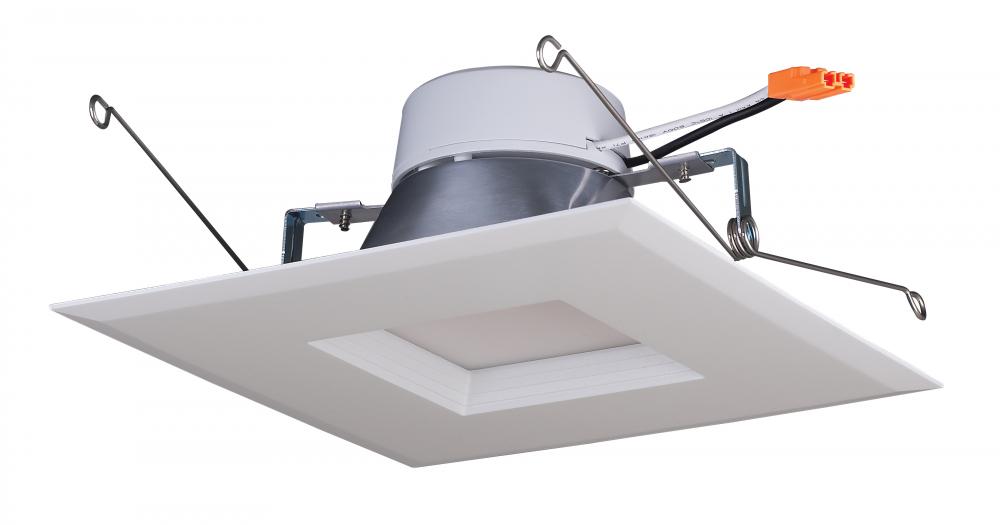

11.5 watt LED Downlight Retrofit; 5-6 inch square shape; 3000K; 120 volt; White Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Additional Info:

Trim material is Thermo Plastic; Trim color is White

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White

Dimmable:

Yes-Dimmable

Each Height:

7.72

Each Length:

8.460000000000001

Each Width:

3.46

Length:

7.41

Lumens:

1000L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.096A

ANSI Base:

E26 Adapter

BAA Compliant:

No

Beam Angle:

90

CA Prop-65:

Lead

Can Size:

5-6 in.

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.1308

Each Quantity:

1

Efficacy:

86.96 LPW

FCC Compliant:

Yes

Feature 1:

Warm white light

Feature 2:

LED

Feature 3:

Wet rated for indoor use

Feature 4:

L:7.51 W:7.41 H:3.25

Feature 5:

Square, White/Frosted

Finish Family:

White

Fixture shape:

Square

IC Rated:

Yes

Incandescent Equivalent:

85W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

Satco's S39771 11.5-watt, 5-6 inch square LED retrofit downlight, offers warm white light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and lon

Material:

Thermo Plastic (PBT)

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.97

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

Satco's 11.5-watt, 5-6 inch square LED retrofit downlight, offers warm white light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long lasti

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

11.5WLED/5-6/SQ/30K/120V

Temperature (CCT):

3000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.65

Manufacturer Info

Manufactured By:

Satco Products Inc.
