Product Overview

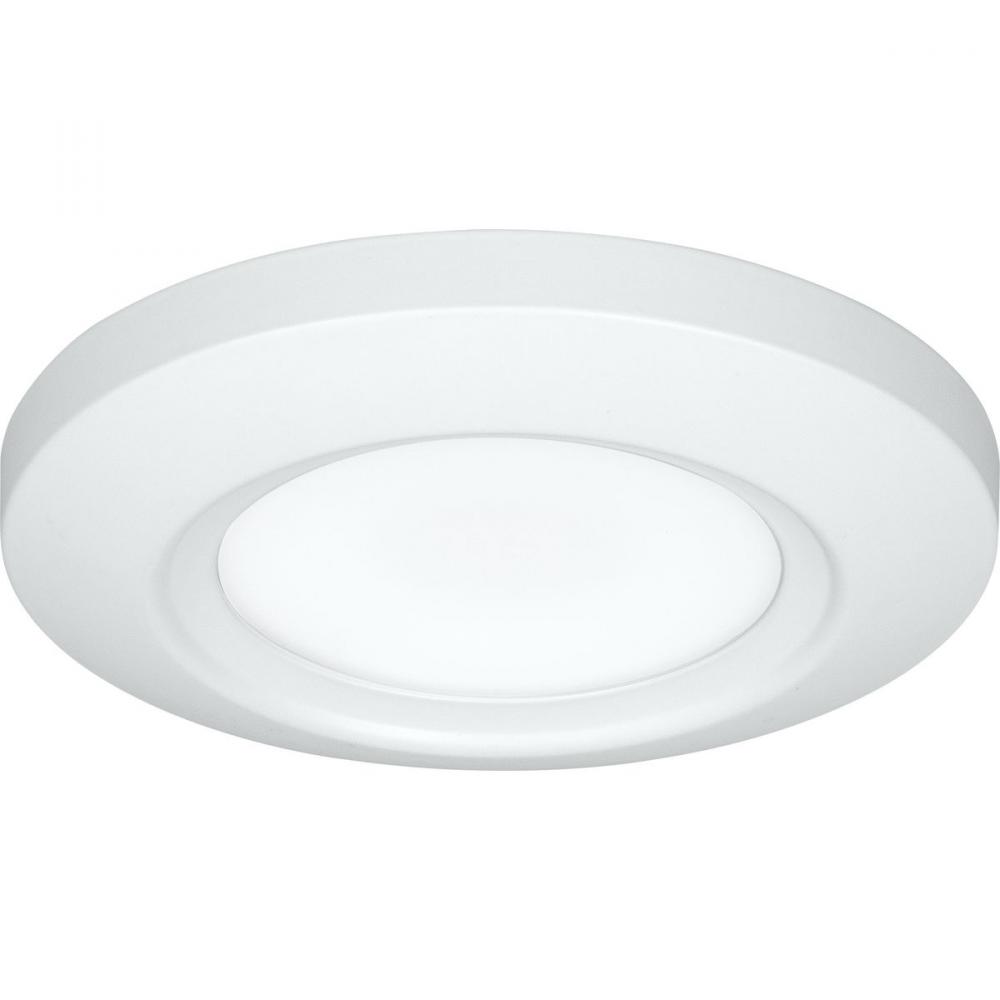

Revel in the brilliant combination of easy installation and a sleek, modern lighting aesthetic offered by our Emblem Surface Mount LED Collection. A symbol of clean, classic designs with smooth, eye-appealing curvature, Emblem provides you with familiar lighting shapes and functional features engineered for both outstanding performance and unparalleled longevity. An excellent choice for general ambient lighting, each polished design features a smooth, slightly tapered trim ring surrounding a single, integrated LED light source. Each trim ring is available in two different sizes and finishes to help meet your unique design needs. Enjoy the unmatched level of glare control offered by the fixture’s diffused polycarbonate lens that also hides any unwanted LED pixilation. Each light fixture is home to an integrated AC LED light engine that seamlessly installs to a variety of ceiling pan junction boxes to give you added flexibility when it comes to creating your design vision. The surface mount will also satiate the cravings of any environmentally-aware and cost-savvy buyer with the fixture's long-lasting, 50,000-hour LED life span and 80% energy savings.

Standard Information

Category:

Exterior

Flush Mounts

Subcategory:

Exterior Flush mounts

Outdoor Flush Mounts

Finish:

White

Style:

Transitional

Option:

Energy Efficient

Energy Star

Title 24

Wet Rated

LED

Title 20

Voltage:

100-120

Lumens:

450-800

Mount Type:

Flush Mount

Kelvin:

2501-3000

Location Rating:

Wet Rated

Refinement Options

Category:

Close-to-Ceiling

Finish:

Satin White

Style:

Modern;Transitional

Option:

Energy Efficient

Energy Star

Title 20

Title 24

Wet Rated

Family:

Emblem

Glass:

Diffused

Voltage:

120

Number of Bulbs:

1 Bulbs

Bulb Hours:

50000

Bulb Type:

LED

Introduction Date:

01/01/2019

Kelvin:

3000

Length:

5.50

Lumens / Light Output:

750

Material:

Die-Cast Aluminum

Ship Carton Height:

6.00

Ship Carton Length:

5.68

Ship Carton Width:

1.37

Ship Weight:

0.64

Special Features:

Integrated AC LED technology 3000K, 90 CRI, 750 lumens (delivered);Die-cast aluminum construction with a powder coat paint finish;Diffused polycarbonate lens controls direct glare from the LEDs;Dimmable to 10% brightness with many Electronic Low Voltage (E

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

0.55

Americans with Disabilities Act:

No

Bulb Base:

LED

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

No

Canopy Shape:

Round

Certified Listed Location:

Wet Location Listed

Construction Material Main part:

Construction

Convertible Fixture Includes Both Mounts:

FALSE

Country of Origin:

CN

Dark Sky:

No

Design Series:

No

Dimming Compatability:

Lutron_Nova T VTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta Wireless;IDevices_IDEV0009;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153PH-WH;Eaton/Cooper_DAL06P;Lutron_Ariadni AYLV-600P;L

Dimming Protocol:

Triac/Forward Phase;ELV/Reverse Phase

Dimming Range:

10%

Energy Efficient:

Yes

Energy Star:

Yes

Finish Type:

Painted

Frequency Rating:

60 Hz

Glass Shape:

Lens

Grounded Convenience Outlet Included:

No

JA8:

2016

Lamp Type Actual:

LED

Lamp Type Basic:

Solid State

Lamp Wattage:

12.5

Lens Shade Material:

Polycarbonate

Lumens per Watt:

60.00

Mount Location:

Wall or Ceiling

MTO:

No

Operating Temperature Celcius Max:

30 °C

Prop 65:

View

Prop 65 Description:

View

Room Type:

Hall & Foyer;Kitchen;Living Room;Bathroom;Bedroom;Dining Room

Safety Rating:

cCSAus

Starting Temperature Minimum:

-25 °C

Sub Brand:

Progress LED

Title 20:

Yes

Title 24:

Yes

Weight of Fixture Exceeds NEC Limits:

No

Manufacturer Info

Manufactured By:

Progress
